Pandasolar Flat Roof Solar Ballast Mounting System Aluminum Manufacturer

ℹ️

Basic Information

Model NO.

PD-BS-AL

Certification

CE

Application

Home

Material

Aluminum Alloy

Type

Roof Ballast Bracket

Wind Speed

60m/S

Snow Load

1.4kn/M2

HS Code

76109000

Package Size

261.00cm * 211.00cm * 193.00cm

Gross Weight

19.850kg

☀️

Product Description

About Solar Tile Roof Mounting Brackets

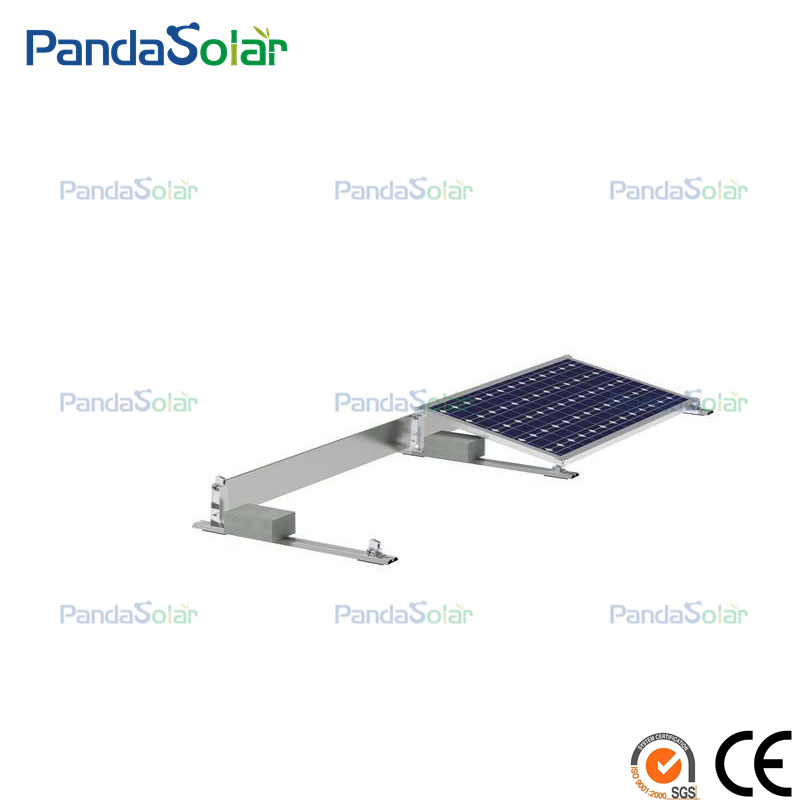

The ballast system is made of AL6005-T5 and is apply to flat cement solar roof mounting. It relies on the concrete pier base to against strong wind and heavy snow. There is no penetration on the roof, ensuring no worry about water leakage. The ballast system installation is easy and flexible which can be freely arranged according to the shape of the roof.

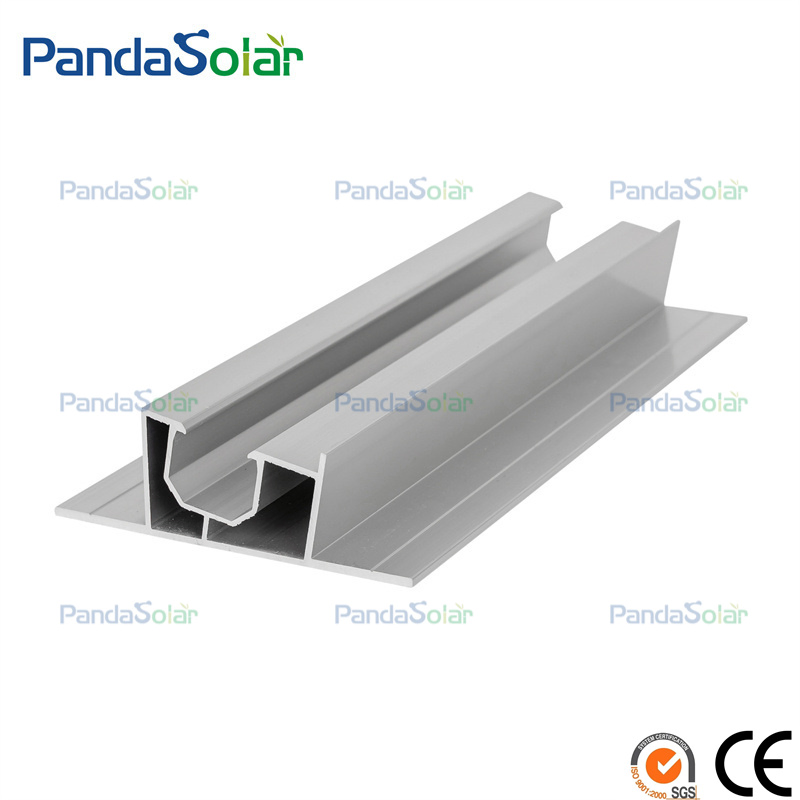

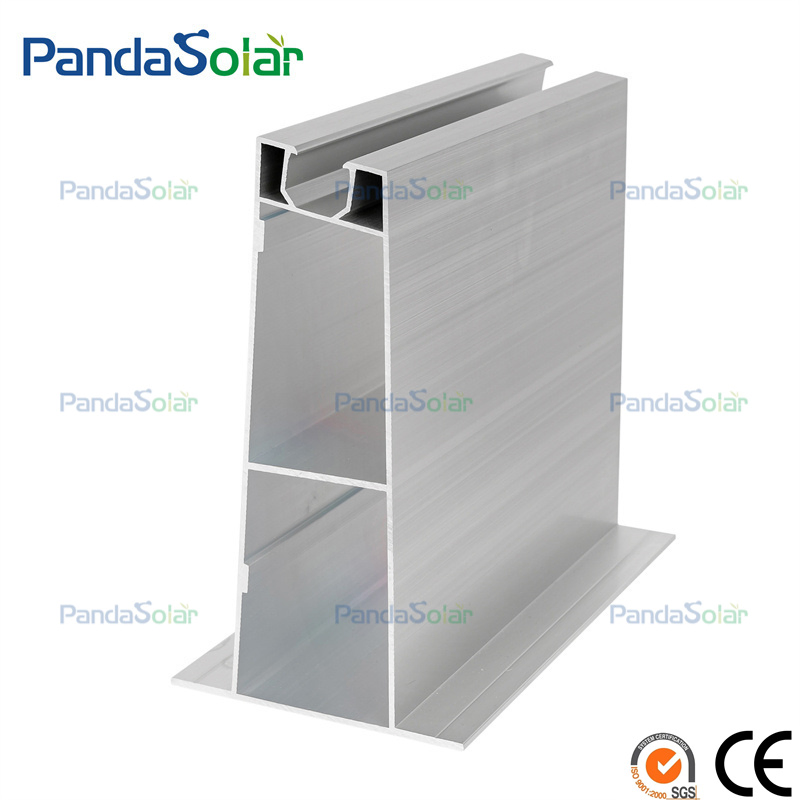

Necessary parts for the complete Solar Ballast Mounting System: rear leg, front leg, bottom profile, windshield, solar end clamp, solar middle clamp, etc.

Installation Method

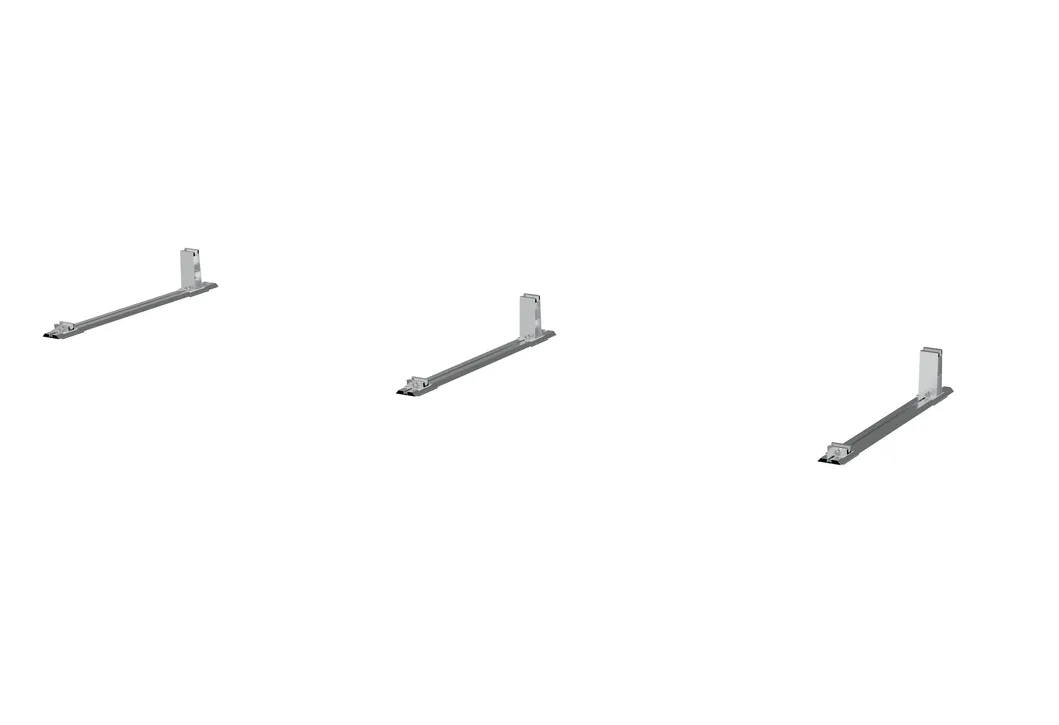

Place the bottom profile on the ground.
Attach the rear leg and front leg to the bottom profile.

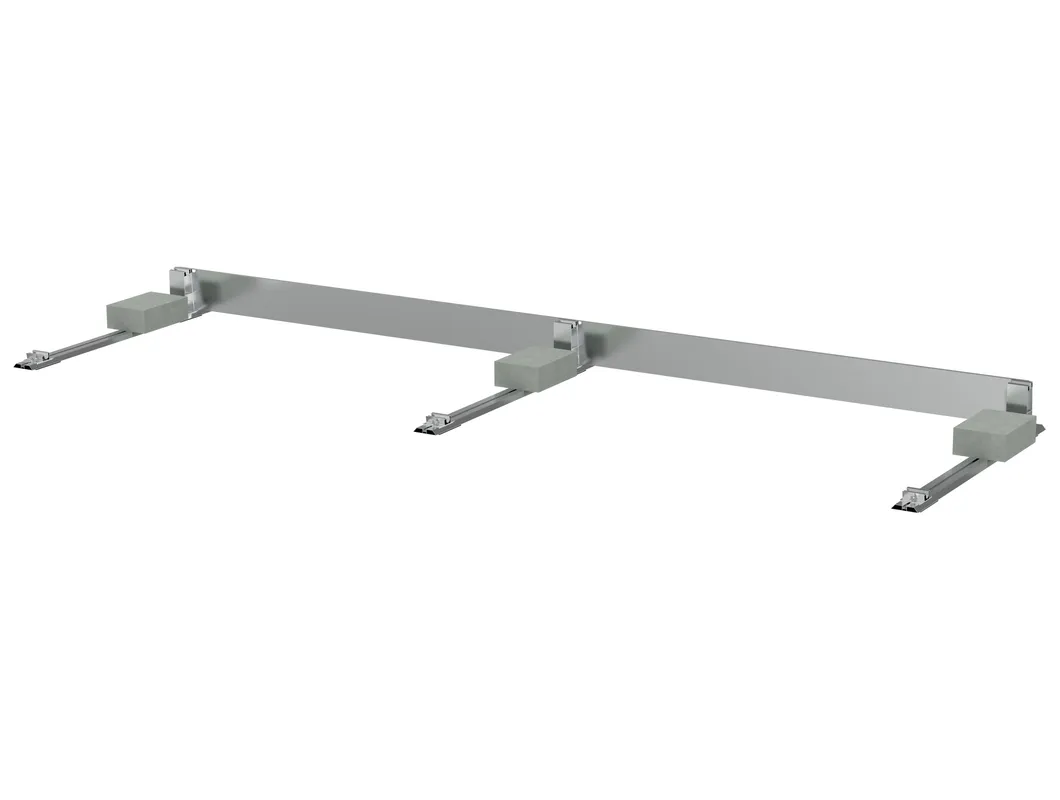

Install windshield to enhance the stability of the bracket. It can adapt to the large wind speed of the roof.

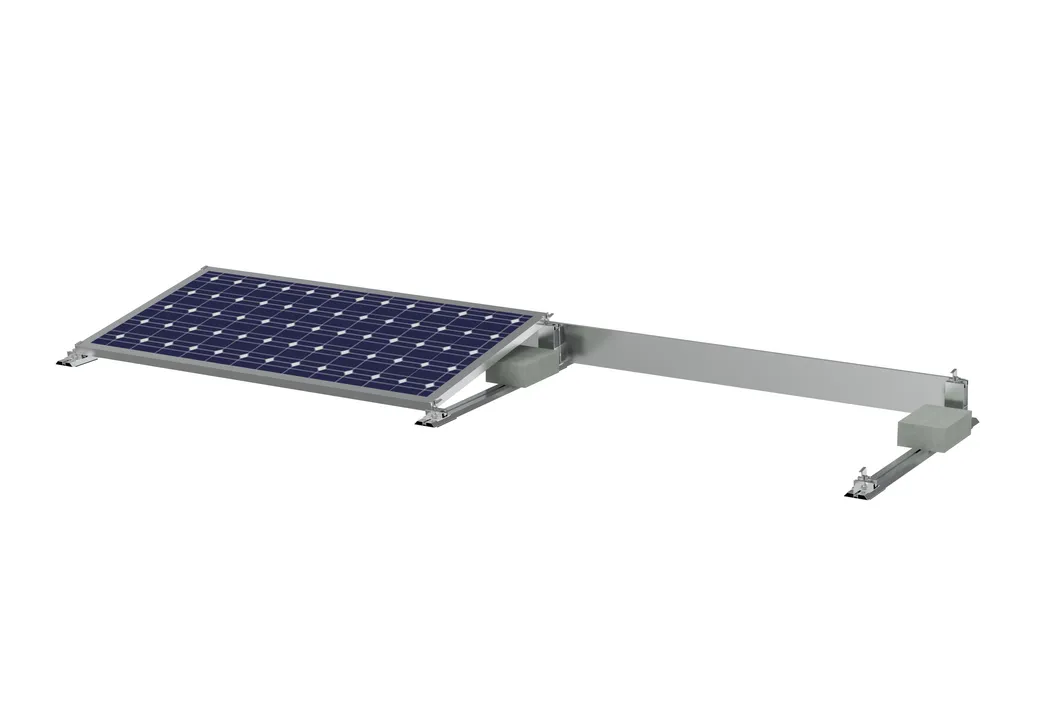

The solar panel is fixed to the Ballast Mounting System using solar end clamp and solar middle clamp.
According to the wind speed and snow load of the roof, the corresponding weight of the cements pier is placed on the bottom profile.

⭐

Our Advantages

Highly pre-assembled for fast installation
Great flexibility in different designs
Long service life
Accept OEM services
Competitive Factory Price
Accept LOGO printing

Material	Structure: AL6005-T5(Anodized) Components: AL6005-T5(Anodized)/SUS304
Application	Solar Tile Roof Mounting
Wind Speed	60m/s
Snow Load	1.4kn/m2
Design Standard	AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009
Warranty	12 years

🏭

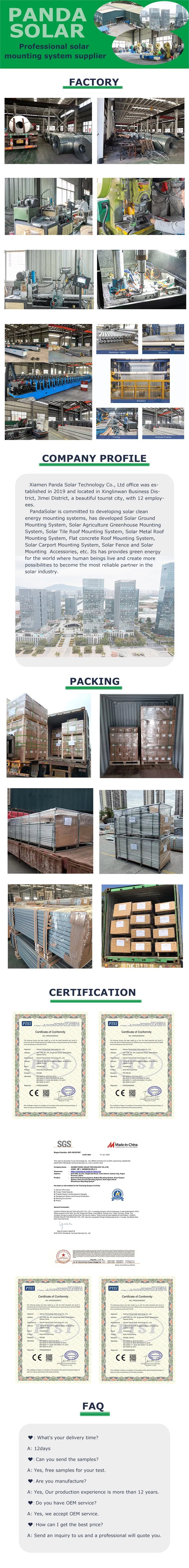

Workshop & Production

Workshop-Aluminum Material

Equipped with a professional aluminum alloy product processing workshop, independent operations include cutting, drilling, stamping, and forging. The professional production team handles products with high customization and precision requirements.

Workshop-Steel Material

Specialized processing workshop for steel, Magnesium aluminum zinc, S350GD, and S450GD. Features 6 production lines and several molding machines. Capable of cutting and holes processing with a productivity of 40-50MW per month.

❓

Frequently Asked Questions

1. What is a flat roof solar ballast mounting system?

It is a mounting solution for flat roofs that uses weighted concrete blocks (ballasts) to secure solar panels, rather than penetrating the roof surface.

2. Will this system cause roof leakage?

No. Since the system relies on concrete piers for stability and does not require drilling into the roof, the waterproof integrity of your roof remains intact.

3. What materials are used in the construction?

The primary structure is made of high-strength AL6005-T5 Aluminum Alloy with an anodized finish, while components use a mix of aluminum and SUS304 stainless steel.

4. Can it withstand extreme weather conditions?

Yes, it is designed to withstand wind speeds up to 60m/s and snow loads up to 1.4kn/m2, complying with international building standards like AS/NZS 1170.

5. Is the system pre-assembled?

The system is highly pre-assembled at the factory, which significantly reduces installation time and labor costs on-site.

6. What is the warranty for this mounting system?

We provide a 12-year warranty for our solar ballast mounting systems, ensuring long-term reliability and performance.
