Solar Floating Kits High Efficiency HDPE Floaters Waterarea Offshore Pool Pond Lake Lagoon Easy Installation Floating Mounting

Basic Specifications

Model NO.BR-FMS

MaterialHDPE

TypeWater Floating Bracket

ColorGrey or Blue

SizeCustomized

Installation SiteLake, River, Sea

Tile Angle0-25 Degree

HS Code7610900000

Production Capacity1000000 PCS/Month

Package Size110.00cm * 110.00cm * 100.00cm

Gross Weight80.000kg

Solar Floating Kits High Efficiency HDPE Floaters

Key Features:

✓ Modular design, simple and convenient splice installation.

✓ Increased floater volume for superior buoyant force.

✓ Made of high-density polyethylene (HDPE) for long service life.

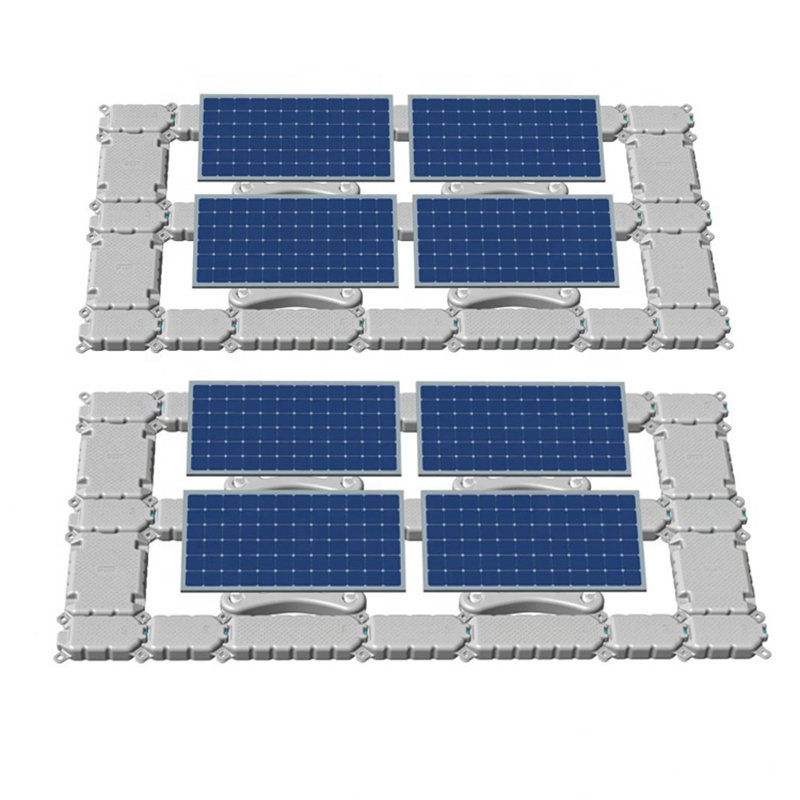

✓ Various array designs, easy to combine and configure.

✓ Symmetrical facing array maximizes installation capacity and efficiency.

✓ Compatible with various solar modules to save costs.

✓ Strong weather resistance, easy operation, and low maintenance.

✓ Ideally suitable for large size module installations.

Technical Specifications

Install site	lake, reservoir, water ponds, small idle water area
Tile angle	5°, 10°, 15°
Max wind speed	51m/s
Snow load	1.0kn/m2
Bearing weight	module floater 70kg/m2, walkway floater 155kg/m2
Module	framed or frameless
Solar panel orientation	landscape, double row in the same/symmetrical facing
Fasteners	zinc-nickle alloy & HDPE & Q235B
Main material	HDPE
Small spare parts	AL6005-T5(Anodized)
Warranty	12 years

Quotation Requirements

Please provide the following information for an accurate quote:

Panel dimensions (Length * Width * Thickness)
Total panel quantity or total project power (KW/MW)
Water Area (m²) and Water Depth (Max/Min)
Environmental Data: Max wind speed (m/s), Max snow load, Max temperature
Water level variation and flow velocity (m/s)
Max wave height (m) and Water quality type
Sediment thickness (mm)

Frequently Asked Questions

What water environments is this floating system suitable for?

The system is designed for a wide range of water bodies including lakes, reservoirs, water ponds, offshore pool areas, and small idle water areas.

What is the durability of the floating materials?

The floaters are made of High-Density Polyethylene (HDPE), which ensures high buoyancy, excellent weather resistance, and a long service life with a 12-year warranty.

Can the system withstand extreme weather conditions?

Yes, the system is engineered to withstand wind speeds up to 51m/s and a snow load of 1.0kn/m², making it reliable in various climates.

Are the floating kits compatible with all solar panels?

The design is modular and compatible with both framed and frameless solar modules, specifically optimized for large-size modules in landscape orientation.

Is the installation process complicated?

No, the system features a modular design that allows for simple and convenient splice installation, which significantly reduces labor time and costs.

What tilt angles are available for the solar panels?

The system supports standard tile angles of 5°, 10°, and 15°, which can be adjusted within a 0-25 degree range based on project requirements.
